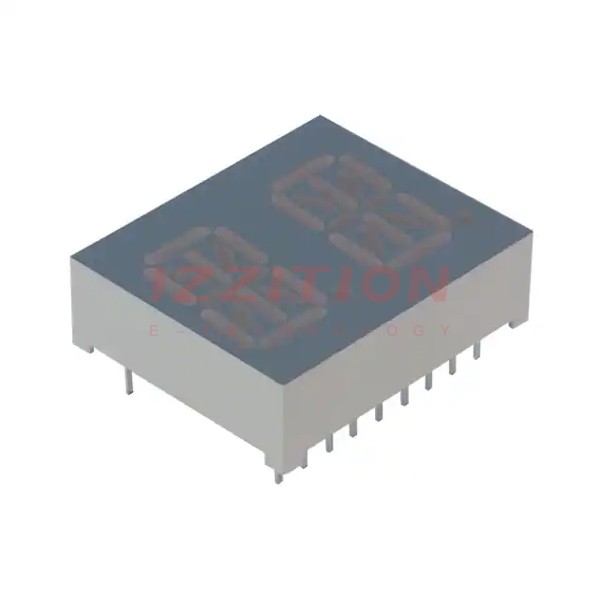

| Part Number | LTP-3786G | LTP-3784G | LTP-3786E |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Display Format | - | - | - |
| Number of Characters | 2 | 2 | 2 |
| Size / Dimension | 0.833" H x 0.992" W x 0.307" D (21.15mm x 25.20mm x 7.80mm) | 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) | 0.833" H x 0.992" W x 0.307" D (21.15mm x 25.20mm x 7.80mm) |
| Digit/Alpha Size | 0.54" (13.72mm) | 0.54" (13.72mm) | 0.54" (13.72mm) |
| Display Type | 14-Segment, Alphanumeric | 14-Segment, Alphanumeric | 14-Segment, Alphanumeric |
| Common Pin | Common Anode | Common Cathode | Common Anode |
| Color | Green | Green | Orange-Red |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2V |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 2.3mcd | 2.3mcd | 2.3mcd |
| Wavelength - Peak | 565nm | 565nm | 630nm |
| Power Dissipation (Max) | 75mW | 75mW | 75mW |
| Package / Case | 18-DIP | 18-DIP | 18-DIP |
