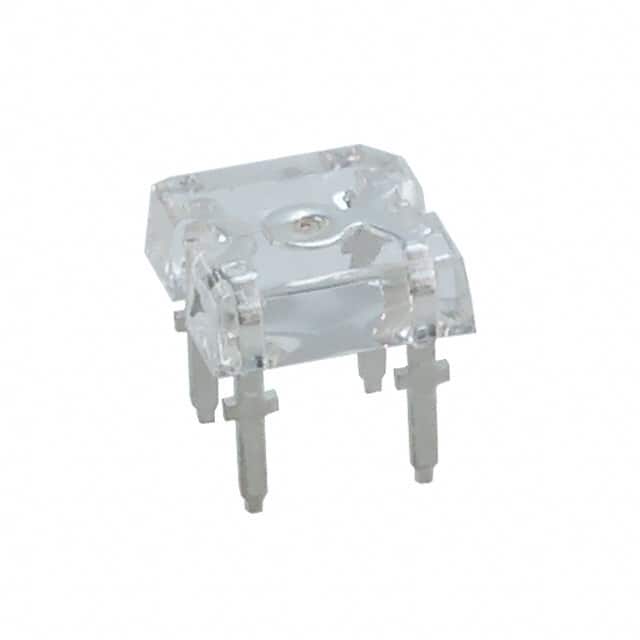

| Part Number | LTL915TBKS | LTL915TGKS | LTL911TBKS | LTL912TBKS |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Blue | Green | Blue | Blue |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | 0.3mcd | 0.3mcd | 1mcd | 1.4mcd |
| Lens Style | Square with Flat Top | Square with Flat Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 7.62mm | 7.62mm | 3.00mm Dia | 3.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 4V | 4V | 4V | 4V |
| Current - Test | 50mA | 50mA | 50mA | 50mA |
| Viewing Angle | 120° | 120° | 75° | 60° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 470nm | 525nm | 470nm | 470nm |
| Wavelength - Peak | 465nm | 518nm | 465nm | 465nm |
| Features | - | - | - | - |
| Package / Case | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W |
| Height (Max) | 4.90mm | 4.90mm | 6.10mm | 6.10mm |
