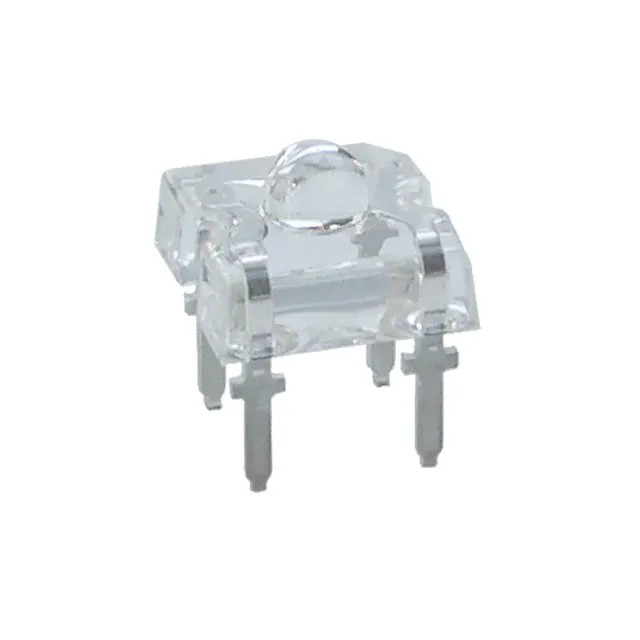

| Part Number | LTL914SYKS | LTL915SYKS | LTL913SYKS | LTL914SEKS |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Amber | Amber | Amber | Red |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | 2mcd | 0.3mcd | 0.8mcd | 2mcd |
| Lens Style | Round with Domed Top | Square with Flat Top | Oval with Domed Top | Round with Domed Top |
| Lens Size | 3.00mm Dia | 7.62mm | 4.00mm x 3.00mm | 3.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.5V | 2.5V | 2.5V | 2.5V |
| Current - Test | 70mA | 70mA | 70mA | 70mA |
| Viewing Angle | 30° | 120° | 100°, 40° | 30° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 594nm | 594nm | 594nm | 628nm |
| Wavelength - Peak | 596nm | 596nm | 596nm | 638nm |
| Features | - | - | - | - |
| Package / Case | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W |
| Height (Max) | 6.90mm | 4.90mm | 6.70mm | 6.90mm |
