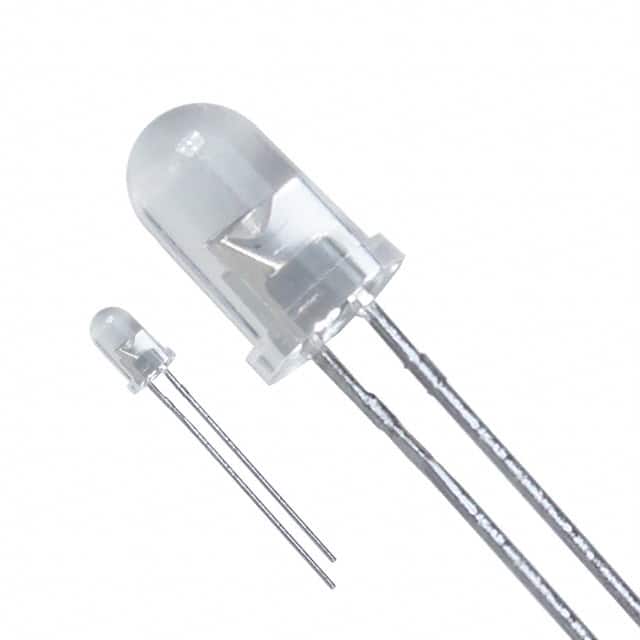

| Part Number | LTL2R3KYK | LTL2R3SYK | LTL2R3QYK | LTL2R3KAK | LTL2R3KEK | LTL2R3KFK | LTL2R3KRK | LTL2R3KSK |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active | Active | Active | Active |
| Color | Amber | Amber | Amber | Red-Orange | Red | Orange | Red | Yellow |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 700mcd | 2800mcd | 700mcd | 700mcd | 700mcd | 700mcd | 680mcd | 1150mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.05V | 2.35V | 2V | 2.05V | 2.05V | 2.05V | 2V | 2.05V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 30° | 30° | 30° | 30° | 30° | 30° | 30° | 30° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 592nm | 590nm | 592nm | 615nm | 624nm | 605nm | 631nm | 590nm |
| Wavelength - Peak | 595nm | 591nm | 595nm | 621nm | 632nm | 611nm | 639nm | 591nm |
| Features | - | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - | - | - | - | - | - |
| Height (Max) | 8.70mm | 8.70mm | 8.70mm | 8.70mm | 8.70mm | 8.70mm | 8.70mm | 8.70mm |
