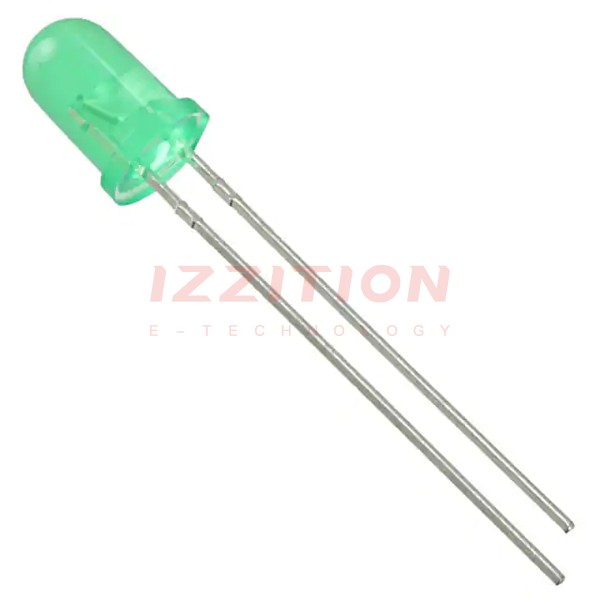

| Part Number | LTL2R3KGD-EM | LTL2R3KYD-EM | LTL2R3KRD-EM |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Green | Yellow | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Green | Yellow | Red |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 38mcd | 50mcd | 50mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5.00mm Dia | 5.00mm Dia | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.8V | 1.8V | 1.8V |
| Current - Test | 2mA | 2mA | 2mA |
| Viewing Angle | 30° | 30° | 30° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 570nm | 588nm | 631nm |
| Wavelength - Peak | 568nm | 592nm | 642nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | - | - |
| Size / Dimension | - | - | - |
| Height (Max) | 8.70mm | 8.70mm | 8.70mm |
