Please send RFQ , we will respond immediately.

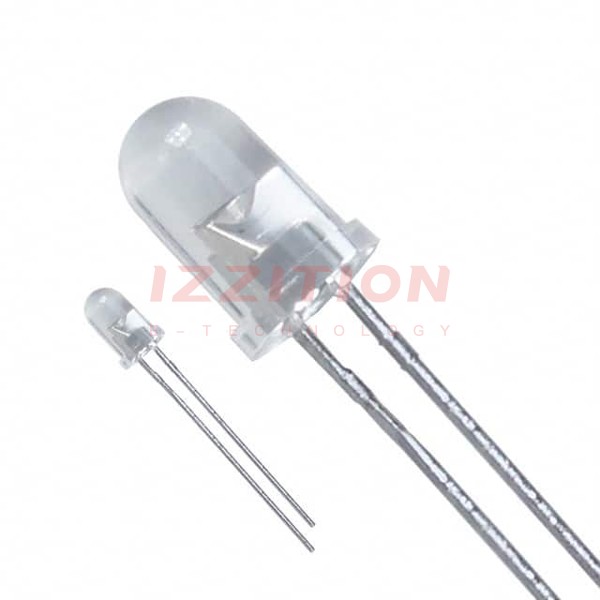

| Part Number | LTL2H3KSK | LTL2R3KSK | LTL2H3KEK |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Yellow | Yellow | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 2500mcd | 1150mcd | 1700mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.05V | 2.05V | 2.05V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | 15° | 30° | 15° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 590nm | 590nm | 624nm |
| Wavelength - Peak | 591nm | 591nm | 632nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - |
| Height (Max) | 8.70mm | 8.70mm | 8.70mm |
