Please send RFQ , we will respond immediately.

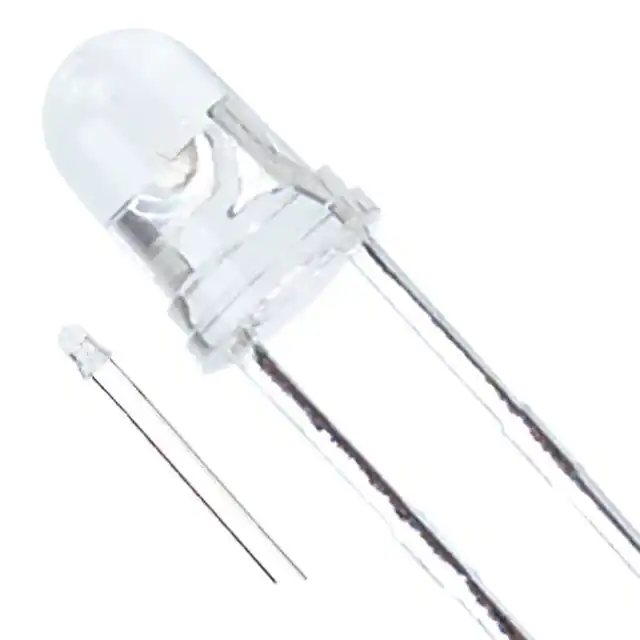

| Part Number | LTL1CHCBK3 | LTL1CHTBK3 | LTL1CHCBK4 | LTL1CHCBK5 |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Blue | Blue | Blue | Blue |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | 180mcd | 520mcd | 400mcd | 680mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3.10mm Dia | 3.10mm Dia | 3.10mm Dia | 3.10mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.5V | 3.5V | 3.7V | 3.7V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 35° | 30° | 30° | 30° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 470nm | 470nm | 470nm | 470nm |
| Wavelength - Peak | 468nm | 468nm | 468nm | 468nm |
| Features | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | - | - | - | - |
| Height (Max) | 5.20mm | 5.20mm | 5.20mm | 5.20mm |
