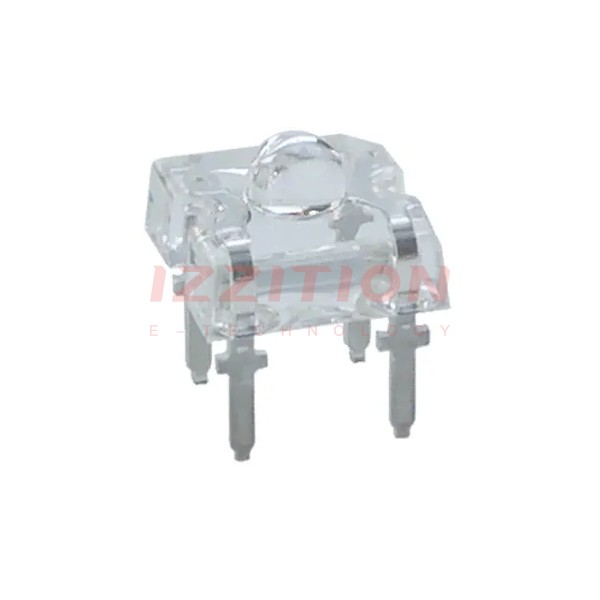

| Part Number | LTL-912VHKSA | LTL-912VRKSA | LTL-912VYKSA | LTL-911VHKSA | LTL-912VEKSA |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Amber | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 1.2mcd | 1.2mcd | 1.2mcd | 0.6mcd | 1.2mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3.00mm Dia | 3.00mm Dia | 3.00mm Dia | 3.00mm Dia | 3.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.15V | 2.15V | 2.15V | 2.15V | 2.15V |
| Current - Test | 70mA | 70mA | 70mA | 70mA | 70mA |
| Viewing Angle | 50° | 50° | 50° | 70° | 50° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 618nm | 631nm | 595nm | 618nm | 624nm |
| Wavelength - Peak | 624nm | 639nm | 598nm | 624nm | 632nm |
| Features | - | - | - | - | - |
| Package / Case | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) | 4-DIP (0.200", 5.08mm) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W | 7.62mm L x 7.62mm W |
| Height (Max) | 6.10mm | 6.10mm | 6.10mm | 6.10mm | 6.10mm |
