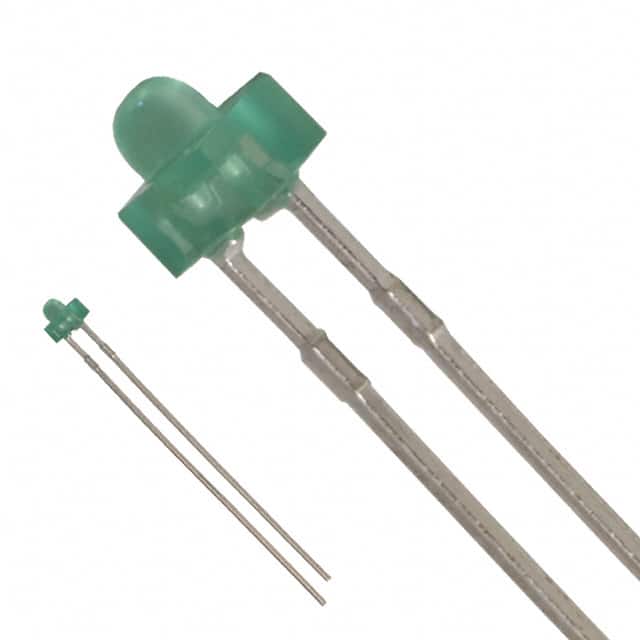

| Part Number | LTL-709L | LTL-709Y | LTL-709E |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Active | Active |
| Color | Green | Yellow | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Green | Yellow | Red |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 8.7mcd | 12.6mcd | 12.6mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.80mm Dia | 1.80mm Dia | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2V |
| Current - Test | 10mA | 10mA | 10mA |
| Viewing Angle | 38° | 38° | 38° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 561nm | 588nm | 623nm |
| Wavelength - Peak | 560nm | 585nm | 635nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | - | - | - |
| Size / Dimension | - | - | - |
| Height (Max) | 3.60mm | 3.60mm | 3.60mm |
