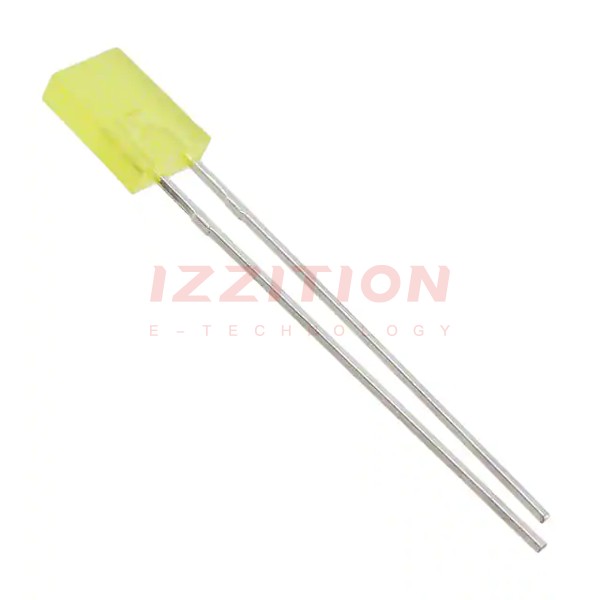

| Part Number | LTL-433Y | LTL-433G | LTL-433P |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Yellow | Green | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Yellow | Green | Red |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 3.7mcd | 3.7mcd | 1.1mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm | 5.00mm x 2.00mm | 5.00mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V |
| Current - Test | 10mA | 20mA | 10mA |
| Viewing Angle | 140° | 140° | 140° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 590nm | 569nm | 657nm |
| Wavelength - Peak | 585nm | 565nm | 697nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | - | - | - |
| Size / Dimension | - | - | - |
| Height (Max) | 7.50mm | 7.50mm | 7.50mm |
