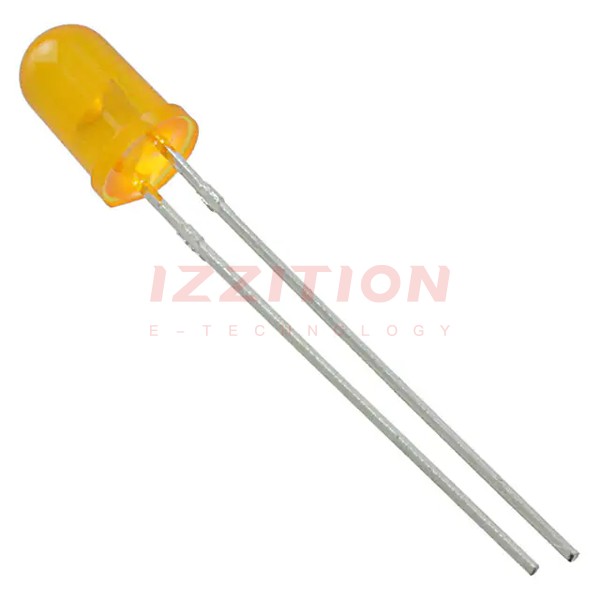

| Part Number | LTL-4273 | LTL-4293 | LTL-4213 | LTL-4223 | LTL-4233 | LTL-4253 | LTL-4263 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Color | Amber | Red | Red | Red | Green | Yellow | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Amber | Orange | Red | Red | Green | Yellow | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 19mcd | 29mcd | 3.7mcd | 19mcd | 19mcd | 19mcd | 135mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2V | 2.1V | 2V | 2.1V | 2.1V | 1.8V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA | 10mA | 20mA |
| Viewing Angle | 36° | 36° | 36° | 36° | 36° | 36° | 36° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 588nm | 621nm | 657nm | 623nm | 569nm | 588nm | 638nm |
| Wavelength - Peak | 600nm | 630nm | 697nm | 635nm | 565nm | 585nm | 660nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - | - | - | - | - |
| Height (Max) | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm |
