Lite-On Inc.-LTL-4261N - LED Indication - Discrete Product Specifications and Latest Quotes

Part Number	LTL-4261N	LTL-4266N	LTL-4291N	LTL-4261NR	LTL-4211N	LTL-4221N	LTL-4231N	LTL-4251N
Manufacturer	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Color	Red	Red	Orange	Red	Red	Red	Green	Yellow
Configuration	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Lens Color	Red	Colorless	Orange	Red	Red	Red	Green	Yellow
Lens Transparency	Diffused	Clear	Diffused	Diffused	Diffused	Diffused	Diffused	Diffused
Millicandela Rating	60mcd	170mcd	8.7mcd	60mcd	4.4mcd	8.7mcd	12.6mcd	5.6mcd
Lens Style	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top
Lens Size	3.00mm Dia	3.00mm Dia	3mm, T-1	2.90mm Dia	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1
Voltage - Forward (Vf) (Typ)	1.8V	1.8V	2V	1.8V	2.1V	2V	2.1V	2.1V
Current - Test	20mA	20mA	10mA	20mA	10mA	10mA	10mA	10mA
Viewing Angle	60°	45°	60°	60°	60°	60°	60°	60°
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Wavelength - Dominant	638nm	638nm	621nm	638nm	657nm	625nm	569nm	588nm
Wavelength - Peak	660nm	660nm	630nm	660nm	697nm	635nm	565nm	585nm
Features	-	-	-	-	-	-	-	-
Package / Case	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
Supplier Device Package	-	T-1	T-1	T-1	T-1	T-1	-	T-1
Size / Dimension	-	-	-	-	-	-	-	-
Height (Max)	6.00mm	6.00mm	6.00mm	5.85mm	5.85mm	5.85mm	5.85mm	5.85mm

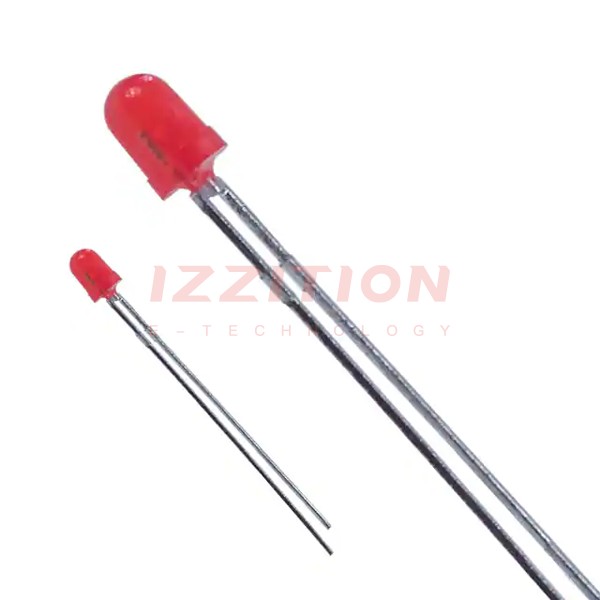

Lite-On Inc. LTL-4261N
