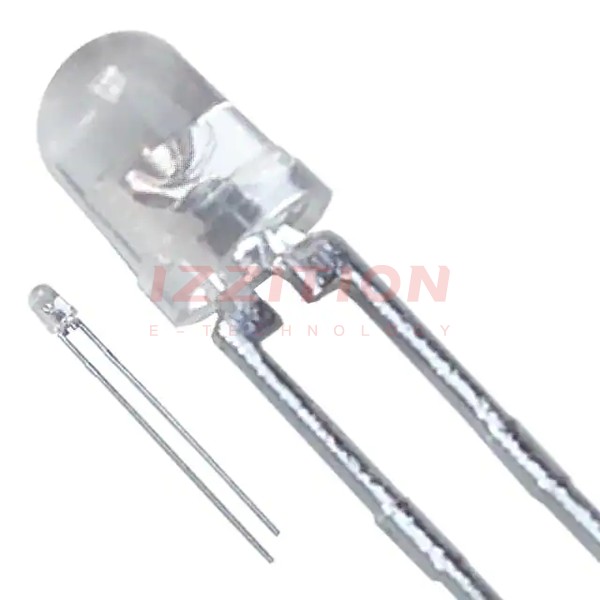

| Part Number | LTL-4256N | LTL-4266N | LTL-4296N | LTL-4236N | LTL-4251N | LTL-4252N |
|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Color | Yellow | Red | Red | Green | Yellow | Yellow |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Yellow | Yellow |
| Lens Transparency | Clear | Clear | Clear | Clear | Diffused | Clear |
| Millicandela Rating | 40mcd | 170mcd | 60mcd | 40mcd | 5.6mcd | 19mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3mm, T-1 | 3.00mm Dia | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.1V | 1.8V | 2V | 2.1V | 2.1V | 2.1V |
| Current - Test | 10mA | 20mA | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | 45° | 45° | 45° | 45° | 60° | 45° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 588nm | 638nm | 621nm | 569nm | 588nm | 588nm |
| Wavelength - Peak | 585nm | 660nm | 630nm | 565nm | 585nm | 585nm |
| Features | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 | T-1 | T-1 | T-1 | T-1 | T-1 |
| Size / Dimension | - | - | - | - | - | - |
| Height (Max) | 5.85mm | 6.00mm | 5.85mm | 5.85mm | 5.85mm | 5.85mm |
