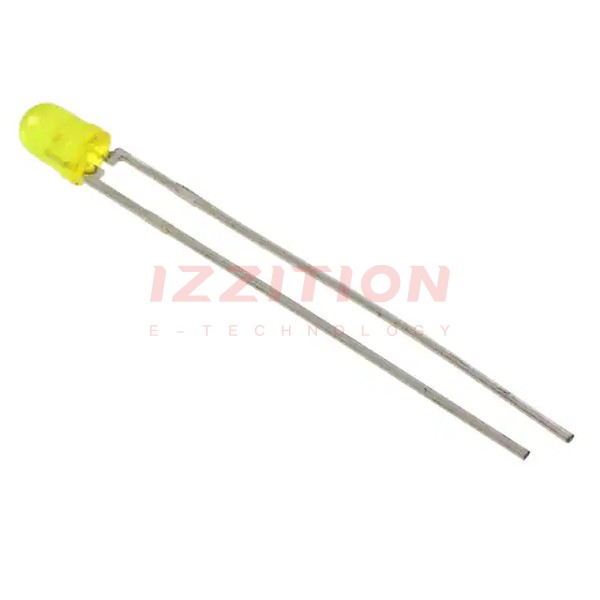

| Part Number | LTL-4251NLC | LTL-4221NLC | LTL-4231NLC |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Yellow | Red | Green |
| Configuration | Standard | Standard | Standard |
| Lens Color | Yellow | Red | Green |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 1.1mcd | 2.5mcd | 1.1mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3.00mm Dia | 3.00mm Dia | 3.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.8V | 1.7V | 1.9V |
| Current - Test | 2mA | 2mA | 2mA |
| Viewing Angle | 60° | 60° | 60° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 588nm | 623nm | 569nm |
| Wavelength - Peak | 585nm | 635nm | 565nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | T-1 | - | - |
| Size / Dimension | - | - | - |
| Height (Max) | 6.00mm | 6.00mm | 6.00mm |
