Lite-On Inc.-LTL-4251 - LED Indication - Discrete Product Specifications and Latest Quotes

Part Number	LTL-4251	LTL-4253	LTL-4254	LTL-4251N	LTL-4291	LTL-4211	LTL-4221	LTL-4231
Manufacturer	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Color	Yellow	Yellow	Yellow	Yellow	Red	Red	Red	Green
Configuration	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Lens Color	Yellow	Yellow	Yellow	Yellow	Orange	Red	Red	Green
Lens Transparency	Diffused	Diffused	Clear	Diffused	Diffused	Diffused	Diffused	Diffused
Millicandela Rating	8.7mcd	19mcd	90mcd	5.6mcd	12.6mcd	2.5mcd	8.7mcd	12.6mcd
Lens Style	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top
Lens Size	3mm, T-1	5mm, T-1 3/4	5mm, T-1 3/4	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1
Voltage - Forward (Vf) (Typ)	2.1V	2.1V	2.1V	2.1V	2V	2.1V	2V	2.1V
Current - Test	10mA	10mA	10mA	10mA	20mA	10mA	20mA	10mA
Viewing Angle	40°	36°	16°	60°	40°	40°	40°	40°
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Wavelength - Dominant	588nm	588nm	588nm	588nm	621nm	657nm	623nm	569nm
Wavelength - Peak	585nm	585nm	585nm	585nm	630nm	697nm	635nm	565nm
Features	-	-	-	-	-	-	-	-
Package / Case	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
Supplier Device Package	T-1	T-1 3/4	T-1 3/4	T-1	T-1	T-1	T-1	T-1
Size / Dimension	-	-	-	-	-	-	-	-
Height (Max)	6.55mm	8.60mm	8.60mm	5.85mm	6.55mm	6.55mm	6.55mm	6.55mm

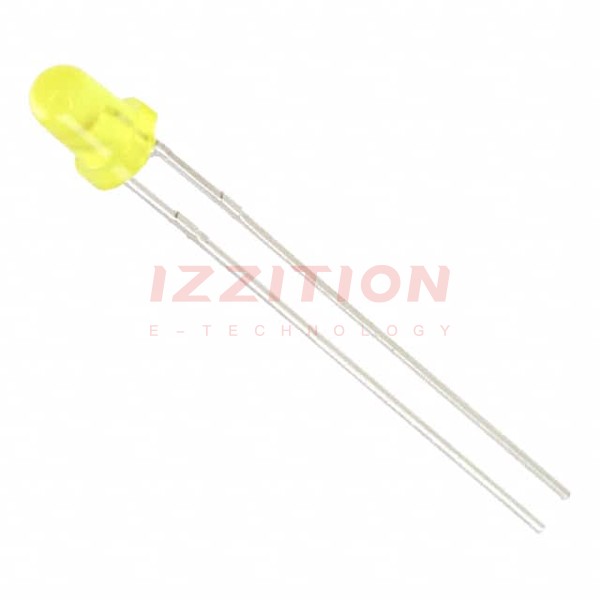

Lite-On Inc. LTL-4251
