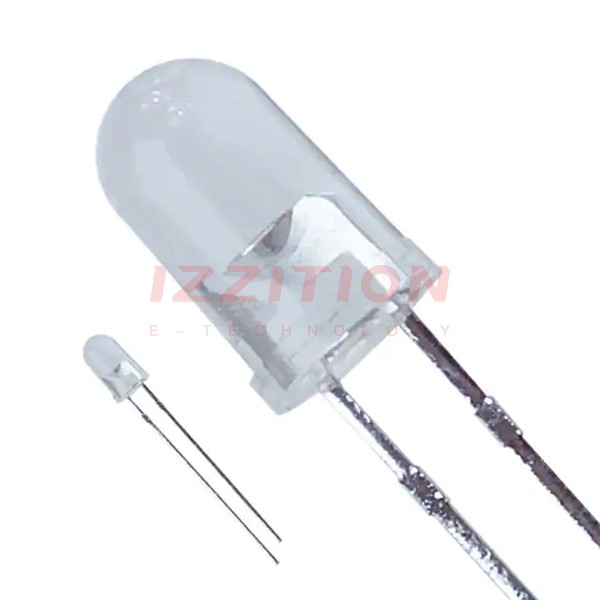

| Part Number | LTL-4238 | LTL-4231 | LTL-4232 | LTL-4233 | LTL-4234 |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Color | Green | Green | Green | Green | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Green | Green | Green | Green |
| Lens Transparency | Clear | Diffused | Clear | Diffused | Clear |
| Millicandela Rating | 90mcd | 12.6mcd | 40mcd | 19mcd | 60mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 3mm, T-1 | 3mm, T-1 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | 16° | 40° | 20° | 36° | 16° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 569nm | 569nm | 569nm | 569nm | 569nm |
| Wavelength - Peak | 565nm | 565nm | 565nm | 565nm | 565nm |
| Features | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | T-1 | T-1 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - | - | - |
| Height (Max) | 8.60mm | 6.55mm | 6.55mm | 8.60mm | 8.60mm |
