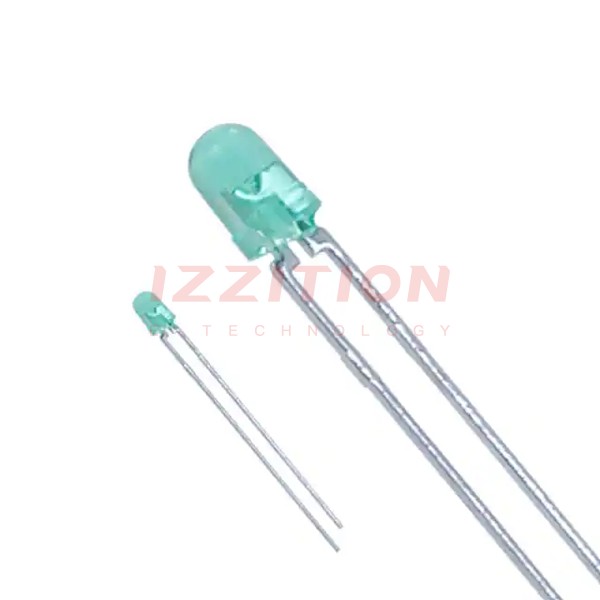

| Part Number | LTL-4232N | LTL-4236N | LTL-4252N | LTL-4222N | LTL-4231N | LTL-4232 |
|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Color | Green | Green | Yellow | Red | Green | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Green | Colorless | Yellow | Red | Green | Green |
| Lens Transparency | Clear | Clear | Clear | Clear | Diffused | Clear |
| Millicandela Rating | 40mcd | 40mcd | 19mcd | 29mcd | 12.6mcd | 40mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2V | 2.1V | 2.1V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | 45° | 45° | 45° | 45° | 60° | 20° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 569nm | 569nm | 588nm | 623nm | 569nm | 569nm |
| Wavelength - Peak | 565nm | 565nm | 585nm | 635nm | 565nm | 565nm |
| Features | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 | T-1 | T-1 | T-1 | - | T-1 |
| Size / Dimension | - | - | - | - | - | - |
| Height (Max) | 5.85mm | 5.85mm | 5.85mm | 5.85mm | 5.85mm | 6.55mm |
