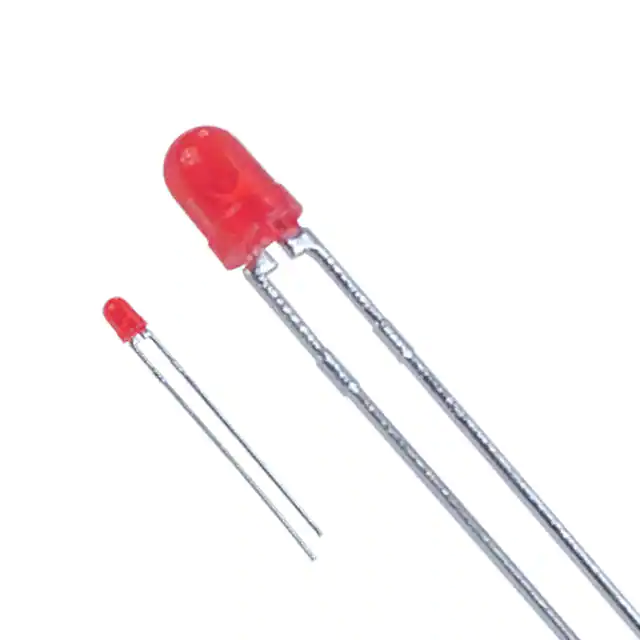

Lite-On Inc.-LTL-4221N - LED Indication - Discrete Product Specifications and Latest Quotes

Part Number	LTL-4221N	LTL-4231N	LTL-4222N	LTL-4291N	LTL-4251N	LTL-4261N	LTL-4211N	LTL-4221
Manufacturer	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Color	Red	Green	Red	Orange	Yellow	Red	Red	Red
Configuration	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Lens Color	Red	Green	Red	Orange	Yellow	Red	Red	Red
Lens Transparency	Diffused	Diffused	Clear	Diffused	Diffused	Diffused	Diffused	Diffused
Millicandela Rating	8.7mcd	12.6mcd	29mcd	8.7mcd	5.6mcd	60mcd	4.4mcd	8.7mcd
Lens Style	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top
Lens Size	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1	3.00mm Dia	3mm, T-1	3mm, T-1
Voltage - Forward (Vf) (Typ)	2V	2.1V	2V	2V	2.1V	1.8V	2.1V	2V
Current - Test	10mA	10mA	10mA	10mA	10mA	20mA	10mA	20mA
Viewing Angle	60°	60°	45°	60°	60°	60°	60°	40°
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Wavelength - Dominant	625nm	569nm	623nm	621nm	588nm	638nm	657nm	623nm
Wavelength - Peak	635nm	565nm	635nm	630nm	585nm	660nm	697nm	635nm
Features	-	-	-	-	-	-	-	-
Package / Case	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
Supplier Device Package	T-1	-	T-1	T-1	T-1	-	T-1	T-1
Size / Dimension	-	-	-	-	-	-	-	-
Height (Max)	5.85mm	5.85mm	5.85mm	6.00mm	5.85mm	6.00mm	5.85mm	6.55mm

Lite-On Inc. LTL-4221N
