Lite-On Inc.-LTL-4221 - LED Indication - Discrete Product Specifications and Latest Quotes

Part Number	LTL-4221	LTL-4223	LTL-4221N	LTL-4224	LTL-4231	LTL-4251	LTL-4291	LTL-4211
Manufacturer	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Color	Red	Red	Red	Red	Green	Yellow	Red	Red
Configuration	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Lens Color	Red	Red	Red	Red	Green	Yellow	Orange	Red
Lens Transparency	Diffused	Diffused	Diffused	Clear	Diffused	Diffused	Diffused	Diffused
Millicandela Rating	8.7mcd	19mcd	8.7mcd	90mcd	12.6mcd	8.7mcd	12.6mcd	2.5mcd
Lens Style	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top	Round with Domed Top
Lens Size	3mm, T-1	5mm, T-1 3/4	3mm, T-1	5mm, T-1 3/4	3mm, T-1	3mm, T-1	3mm, T-1	3mm, T-1
Voltage - Forward (Vf) (Typ)	2V	2V	2V	2V	2.1V	2.1V	2V	2.1V
Current - Test	20mA	10mA	10mA	10mA	10mA	10mA	20mA	10mA
Viewing Angle	40°	36°	60°	16°	40°	40°	40°	40°
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Wavelength - Dominant	623nm	623nm	625nm	623nm	569nm	588nm	621nm	657nm
Wavelength - Peak	635nm	635nm	635nm	635nm	565nm	585nm	630nm	697nm
Features	-	-	-	-	-	-	-	-
Package / Case	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
Supplier Device Package	T-1	T-1 3/4	T-1	T-1 3/4	T-1	T-1	T-1	T-1
Size / Dimension	-	-	-	-	-	-	-	-
Height (Max)	6.55mm	8.60mm	5.85mm	8.60mm	6.55mm	6.55mm	6.55mm	6.55mm

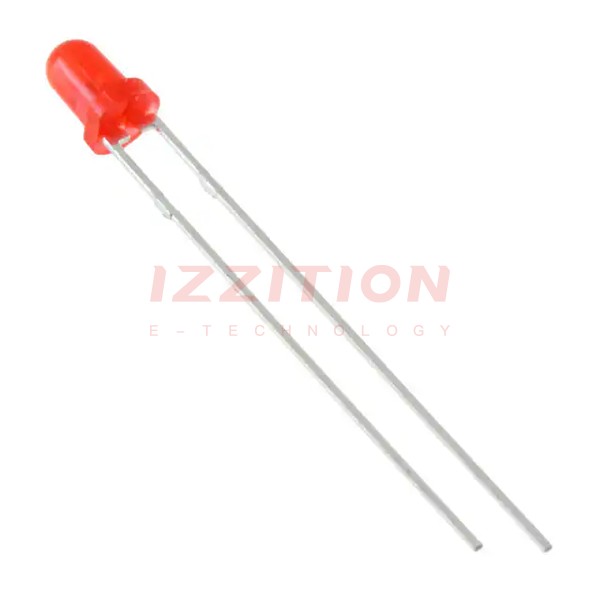

Lite-On Inc. LTL-4221
