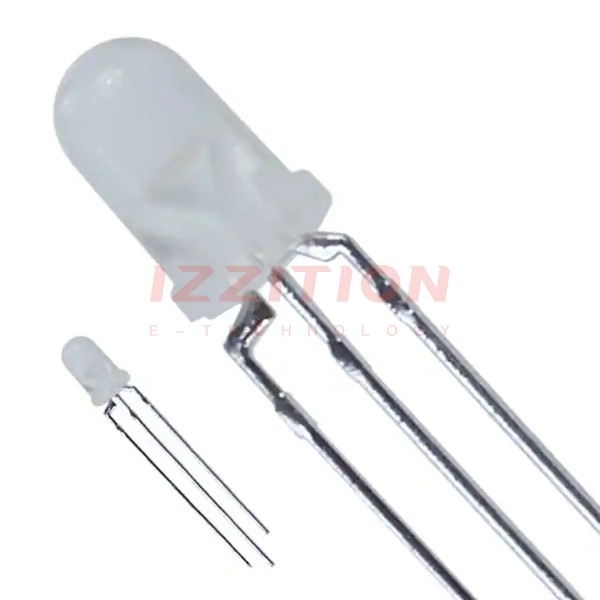

| Part Number | LTL-30EDJ | LTL-30EHJ | LTL-30EFJ |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Green, Yellow | Green, Red | Green, Red |
| Configuration | Common Cathode | Common Cathode | Common Cathode |
| Lens Color | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 29mcd Green, 29mcd Yellow | 29mcd Green, 40mcd Red | 19mcd Green, 5.6mcd Red |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Yellow | 2.1V Green, 2V Red | 2.1V Green, 2.1V Red |
| Current - Test | 20mA Green, 20mA Yellow | 20mA Green, 20mA Red | 20mA Green, 20mA Red |
| Viewing Angle | 30° | 30° | 30° |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 569nm Green, 588nm Yellow | 572nm Green, 625nm Red | 569nm Green, 657nm Red |
| Wavelength - Peak | 565nm Green, 585nm Yellow | 565nm Green, 630nm Red | 565nm Green, 697nm Red |
| Features | - | - | - |
| Package / Case | Radial - 3 Leads | Radial - 3 Leads | Radial - 3 Leads |
| Supplier Device Package | T-1 3/4 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - |
| Height (Max) | 8.60mm | 8.60mm | 8.60mm |
