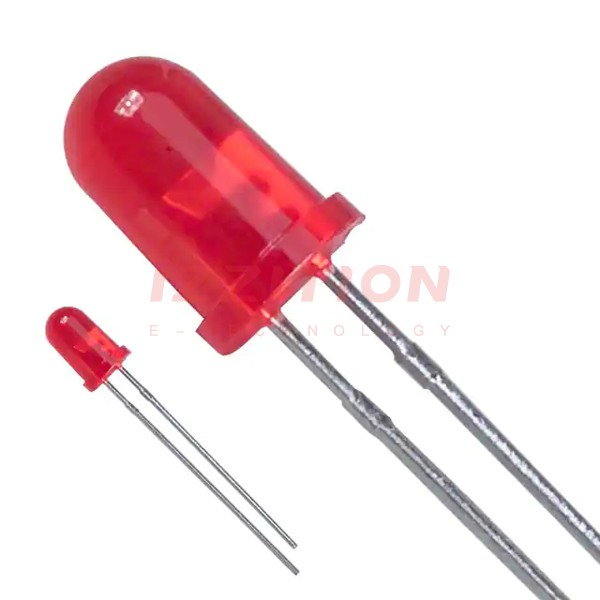

| Part Number | LTL-307E | LTL-307EE | LTL-307Y | LTL-307G | LTL-307GE | LTL-307P | LTL-307YE | LTL-307A | LTL-307AE |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Red | Red | Yellow | Green | Green | Red | Yellow | Amber | Amber |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | Yellow | Green | Green | Red | Yellow | Amber | Amber |
| Lens Transparency | Diffused | Clear | Diffused | Diffused | Clear | Diffused | Clear | Diffused | Clear |
| Millicandela Rating | 19mcd | 90mcd | 29mcd | 19mcd | 60mcd | 5.6mcd | 40mcd | 29mcd | 40mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5.00mm Dia | 5.00mm Dia | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 50° | 40° | 50° | 50° | 40° | 50° | 40° | 50° | 40° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 623nm | 623nm | 590nm | 569nm | 569nm | 657nm | 588nm | 602nm | 602nm |
| Wavelength - Peak | 635nm | 635nm | 585nm | 565nm | 565nm | 697nm | 585nm | 610nm | 610nm |
| Features | - | - | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 | T-1 3/4 |
| Size / Dimension | - | - | - | - | - | - | - | - | - |
| Height (Max) | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm | 8.60mm |
