Please send RFQ , we will respond immediately.

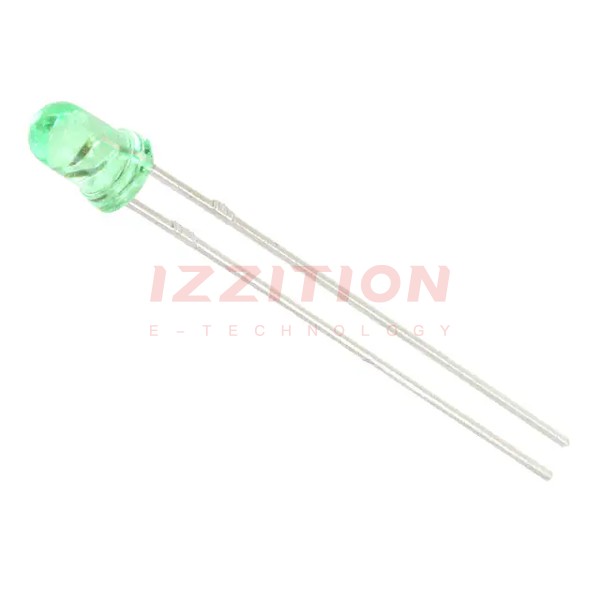

| Part Number | LTL-1CHGE | LTL-1CHYE | LTL-1CHAE | LTL-1CHE | LTL-1CHEE | LTL-1CHG |
|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Color | Green | Yellow | Amber | Red | Red | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Green | Yellow | Amber | Red | Red | Green |
| Lens Transparency | Clear | Clear | Clear | Diffused | Clear | Diffused |
| Millicandela Rating | 40mcd | 40mcd | 29mcd | 12.6mcd | 19mcd | 12.6mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3.10mm Dia | 3.10mm Dia | 3.10mm Dia | 3.10mm Dia | 3.10mm Dia | 3.10mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2V | 2V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 45° | 45° | 45° | 60° | 45° | 60° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 573nm | 588nm | 602nm | 623nm | 625nm | 569nm |
| Wavelength - Peak | 565nm | 585nm | 610nm | 635nm | 635nm | 565nm |
| Features | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | - | - | - | - | - | - |
| Height (Max) | 5.20mm | 5.20mm | 5.20mm | 5.20mm | 5.20mm | 5.20mm |
