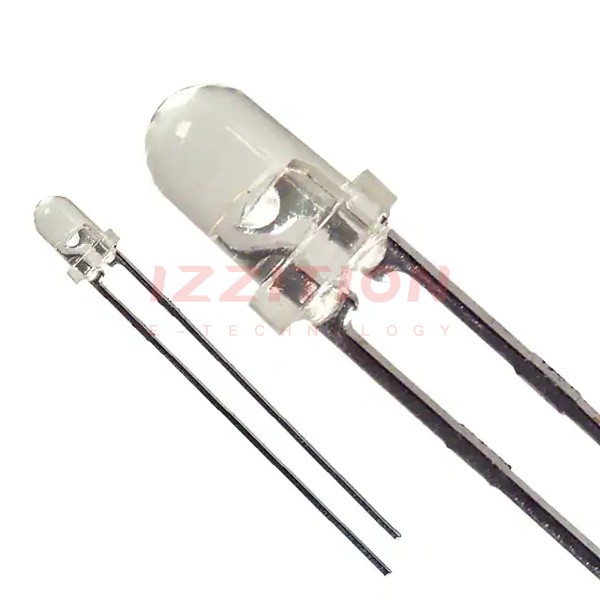

| Part Number | LTE-4208 | LTE-4206 |
|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active |
| Type | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 50mA | 60mA |
| Radiant Intensity (Ie) Min @ If | 3.31mW/sr @ 20mA | 1.38mW/sr @ 20mA |
| Wavelength | 940nm | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.2V | 1.2V |
| Viewing Angle | 20° | 20° |
| Orientation | Top View | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | T 1 3/4 | T-1 |
