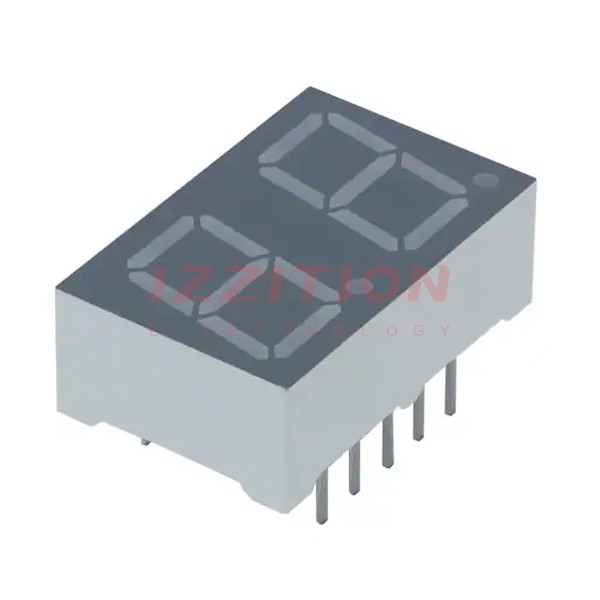

| Part Number | LTD-4708JR | LTD-4708JS | LTD-4608JR | LTD-4708JF |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active |
| Display Format | - | - | - | - |
| Number of Characters | 2 | 2 | 2 | 2 |
| Size / Dimension | 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) | 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) | 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) | 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) |
| Digit/Alpha Size | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Anode | Common Cathode |
| Color | Red | Yellow | Red | Orange-Yellow |
| Voltage - Forward (Vf) (Typ) | 2V | 2.05V | 2V | 2.05V |
| Current - Test | 1mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 0.65mcd | 0.65mcd | 0.85mcd | 0.85mcd |
| Wavelength - Peak | 639nm | 588nm | 639nm | 611nm |
| Power Dissipation (Max) | 70mW | 70mW | 70mW | 70mW |
| Package / Case | 10-DIP (0.400", 10.16mm) | 10-DIP (0.400", 10.16mm) | 10-DIP (0.400", 10.16mm) | 10-DIP (0.400", 10.16mm) |
