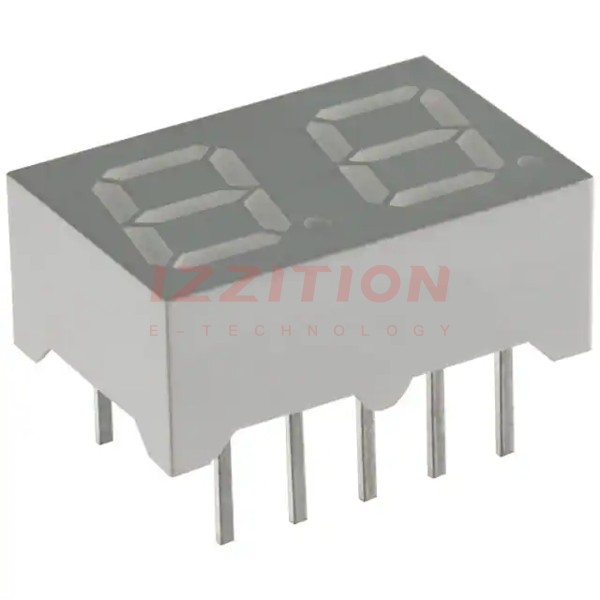

| Part Number | LTD-2601B | LTD-2601G | LTD-2701B |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Display Format | - | - | - |
| Number of Characters | 2 | 2 | 2 |
| Size / Dimension | 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) | 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) | 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) |
| Digit/Alpha Size | 0.28" (7.00mm) | 0.28" (7.00mm) | 0.28" (7.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Cathode |
| Color | Blue | Green | Blue |
| Voltage - Forward (Vf) (Typ) | 3.8V | 2.1V | 3.8V |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 3mcd | 2mcd | 3mcd |
| Wavelength - Peak | 428nm | 565nm | 428nm |
| Power Dissipation (Max) | 65mW | 75mW | 65mW |
| Package / Case | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) |
