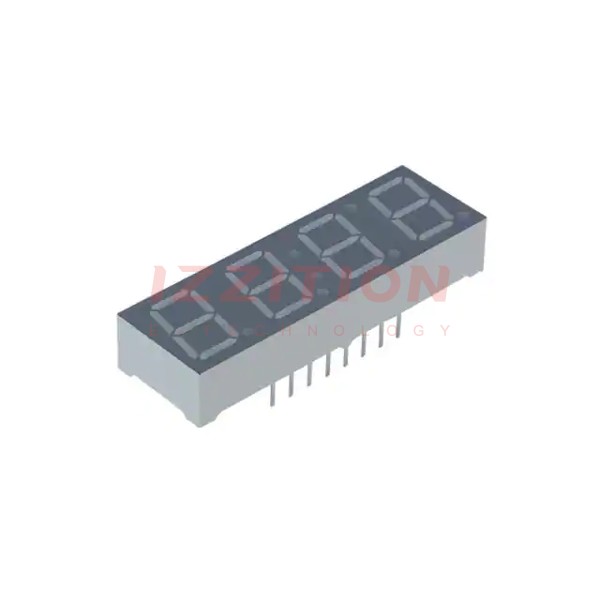

| Part Number | LTC-4727JR | LTC-4727JS | LTC-4627JR | LTC-4724JR | LTC-4727JF |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 4 | 4 | 4 | 3 | 4 |
| Size / Dimension | 0.504" H x 1.582" W x 0.276" D (12.80mm x 40.18mm x 7.00mm) | 0.504" H x 1.582" W x 0.276" D (12.80mm x 40.18mm x 7.00mm) | 0.504" H x 1.582" W x 0.276" D (12.80mm x 40.18mm x 7.00mm) | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | 0.504" H x 1.582" W x 0.276" D (12.80mm x 40.18mm x 7.00mm) |
| Digit/Alpha Size | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) |
| Display Type | 7-Segment Clock | 7-Segment Clock | 7-Segment Clock | 7-Segment | 7-Segment Clock |
| Common Pin | Common Cathode | Common Cathode | Common Anode | Common Cathode | Common Cathode |
| Color | Red | Yellow | Red | Red | Orange-Yellow |
| Voltage - Forward (Vf) (Typ) | 2V | 2.05V | 2V | 2V | 2.05V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 0.98mcd | 0.65mcd | 0.65mcd | 0.65mcd | 0.65mcd |
| Wavelength - Peak | 639nm | 588nm | 639nm | 631nm | 611nm |
| Power Dissipation (Max) | 70mW | 40mW | 70mW | 70mW | 70mW |
| Package / Case | 16-DIP (0.400", 10.16mm), 14 Leads | 16-DIP (0.400", 10.16mm), 14 Leads | 16-DIP (0.400", 10.16mm), 14 Leads | 15-DIP (0.400", 10.16mm), 12 Leads | 16-DIP (0.400", 10.16mm), 14 Leads |
