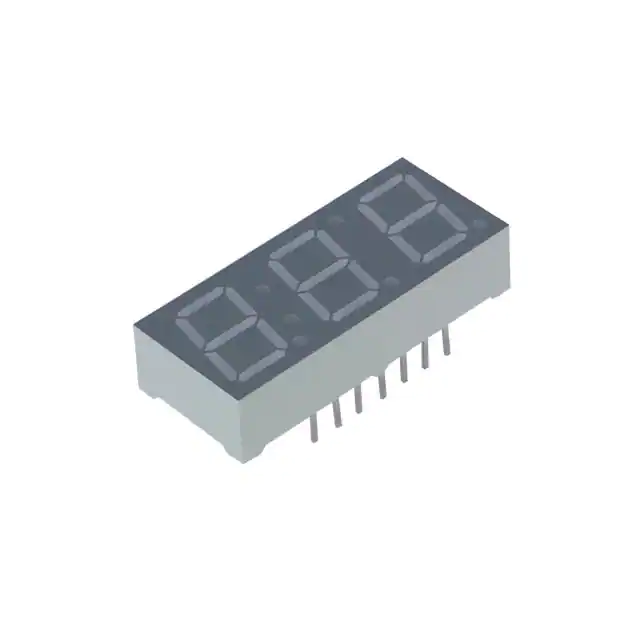

| Part Number | LTC-4624JS | LTC-4627JS | LTC-4724JS | LTC-4624JF | LTC-4624JR |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 3 | 4 | 3 | 3 | 3 |
| Size / Dimension | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | 0.504" H x 1.582" W x 0.276" D (12.80mm x 40.18mm x 7.00mm) | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) |
| Digit/Alpha Size | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) |
| Display Type | 7-Segment | 7-Segment Clock | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Cathode | Common Anode | Common Anode |
| Color | Yellow | Yellow | Yellow | Orange-Yellow | Red |
| Voltage - Forward (Vf) (Typ) | 2.05V | 2.05V | 2.05V | 2.05V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 0.65mcd | 0.65mcd | 0.65mcd | 0.65mcd | 0.65mcd |
| Wavelength - Peak | 588nm | 588nm | 588nm | 611nm | 639nm |
| Power Dissipation (Max) | 40mW | 40mW | 40mW | 70mW | 70mW |
| Package / Case | 16-DIP | 16-DIP (0.400", 10.16mm), 14 Leads | 15-DIP (0.400", 10.16mm), 12 Leads | 16-DIP | 16-DIP |
