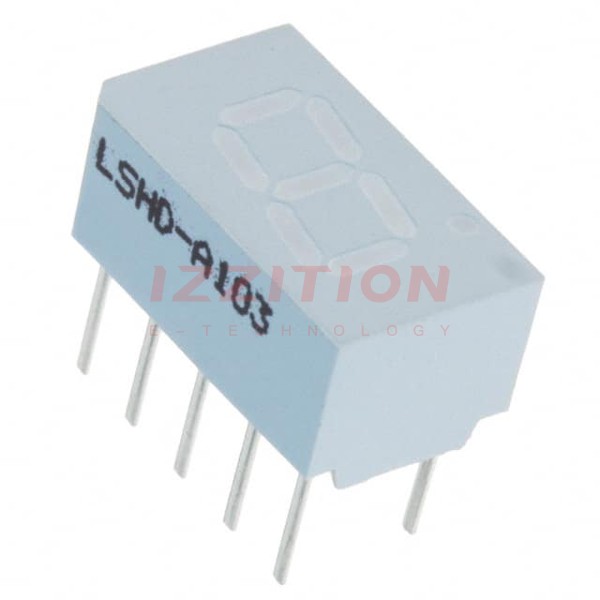

| Part Number | LSHD-A103 | LSHD-A101 |
|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active |
| Display Format | - | - |
| Number of Characters | 1 | 1 |
| Size / Dimension | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) |
| Digit/Alpha Size | 0.30" (7.62mm) | 0.30" (7.62mm) |
| Display Type | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Anode |
| Color | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA |
| Millicandela Rating | 9mcd | 9mcd |
| Wavelength - Peak | 650nm | 650nm |
| Power Dissipation (Max) | 70mW | 70mW |
| Package / Case | 10-DIP (0.200", 5.08mm) | 10-DIP (0.200", 5.08mm) |
