Please send RFQ , we will respond immediately.

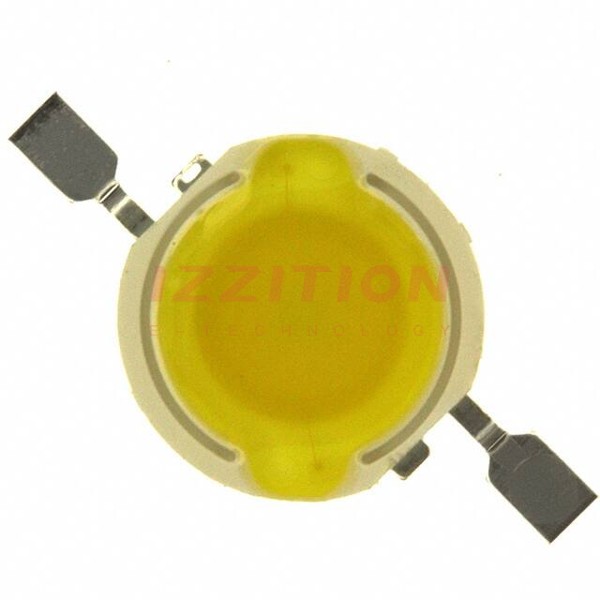

| Part Number | LOPL-E001W | LOPL-E001M |
|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete |
| Color | White | White |
| CCT (K) | - | - |
| Flux @ 85°C, Current - Test | - | - |
| Flux @ 25°C, Current - Test | 43lm (Typ) | 28lm (Typ) |
| Current - Test | 350mA | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.8V | 3.8V |
| Lumens/Watt @ Current - Test | 32 lm/W | 21 lm/W |
| CRI (Color Rendering Index) | 85 (Typ) | 70 (Typ) |
| Current - Max | 350mA | 350mA |
| Viewing Angle | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Gull Wing Exposed Pad | 2-SMD, Gull Wing Exposed Pad |
| Supplier Device Package | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) |
