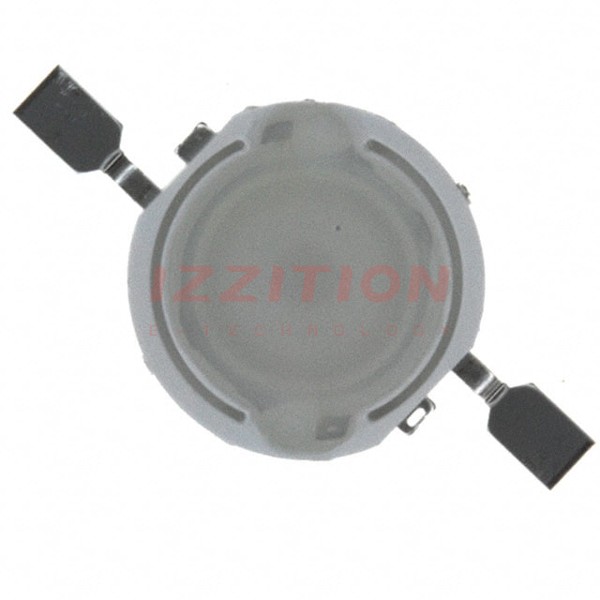

| Part Number | LOPL-E001G | LOPL-E001R | LOPL-E001A | LOPL-E001B | LOPL-E001C |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Green | Red | Amber | Blue | Cyan |
| Wavelength | 525nm (Typ) | 625nm (Typ) | 590nm (Typ) | 465nm (Typ) | 505nm (Typ) |
| Current - Test | 350mA | 350mA | 350mA | 350mA | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.7V | 2.57V | 2.57V | 3.8V | 3.7V |
| Lumens/Watt @ Current - Test | 39 lm/W | 41 lm/W | 40 lm/W | 7 lm/W | 27 lm/W |
| Current - Max | 350mA | 350mA | 350mA | 350mA | 350mA |
| Luminous Flux @ Current/Temperature | 51lm (Typ) | 37lm (Typ) | 36lm (Typ) | 9lm (Typ) | 35lm (Typ) |
| Temperature - Test | 25°C | 25°C | 25°C | 25°C | 25°C |
| Viewing Angle | 110° | 110° | 110° | 110° | 110° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Gull Wing Exposed Pad | 2-SMD, Gull Wing Exposed Pad | 2-SMD, Gull Wing Exposed Pad | 2-SMD, Gull Wing Exposed Pad | 2-SMD, Gull Wing Exposed Pad |
| Supplier Device Package | SMD | SMD | SMD | SMD | SMD |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
