H11A5S
  • Share:

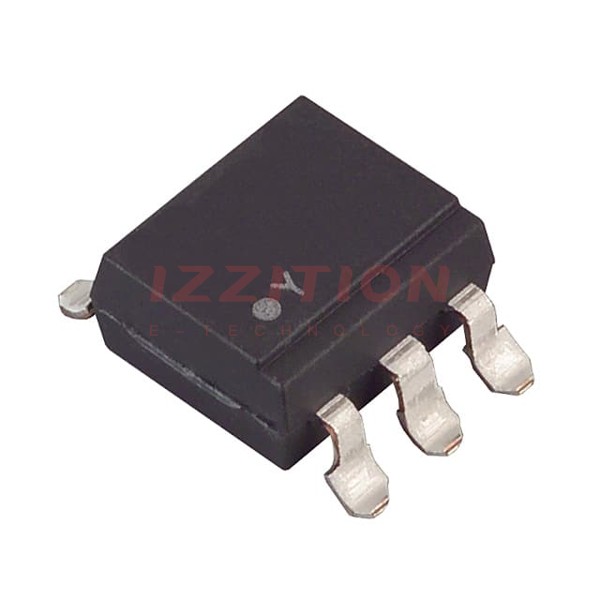

Lite-On Inc. H11A5S

Manufacturer No:
H11A5S
Manufacturer:
Lite-On Inc.
Package:
Bag
Datasheet:
H11A5S Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV TRANS W/BASE 6SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):30% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):2.8µs, 4.5µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):30V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
0 Remaining View Similar

In Stock

-
339

Please send RFQ , we will respond immediately.
