CNY17F-1S-TA1
  • Share:

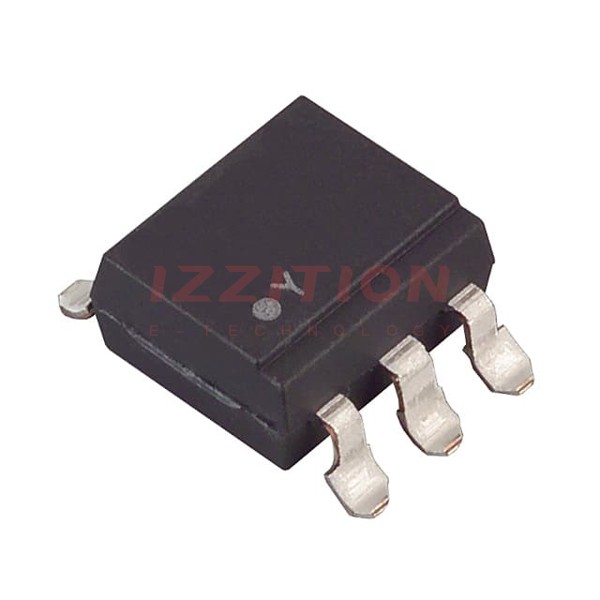

Lite-On Inc. CNY17F-1S-TA1

Manufacturer No:
CNY17F-1S-TA1
Manufacturer:
Lite-On Inc.
Package:
Tape & Reel (TR)
Datasheet:
CNY17F-1S-TA1 Datasheet
ECAD Model:
-
Description:
OPTOISOLTR 5KV TRANSISTOR 6-SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):40% @ 10mA
Current Transfer Ratio (Max):80% @ 10mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):5µs, 5µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
0 Remaining View Similar

In Stock

-
58

Please send RFQ , we will respond immediately.
