6N137S-TA1
  • Share:

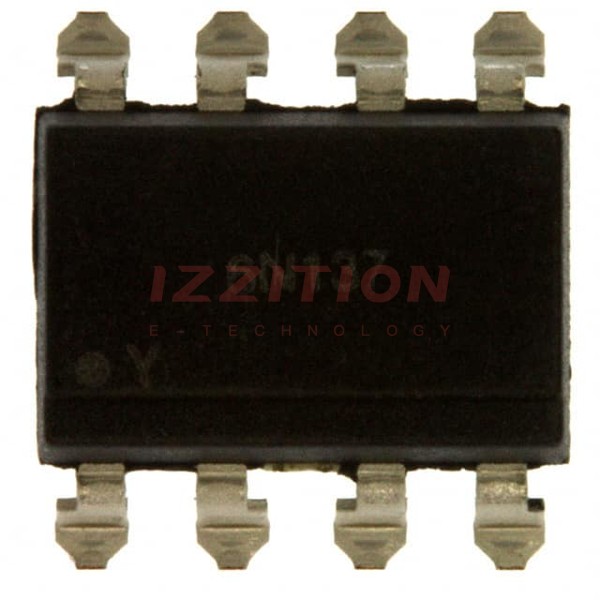

Lite-On Inc. 6N137S-TA1

Manufacturer No:
6N137S-TA1
Manufacturer:
Lite-On Inc.
Package:
Tape & Reel (TR)
Datasheet:
6N137S-TA1 Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV 1CH OPEN COLL 8SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):10kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:50 mA
Data Rate:15MBd
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):22ns, 6.9ns
Voltage - Forward (Vf) (Typ):1.38V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:7V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
0 Remaining View Similar

In Stock

$0.82
558

Please send RFQ , we will respond immediately.
