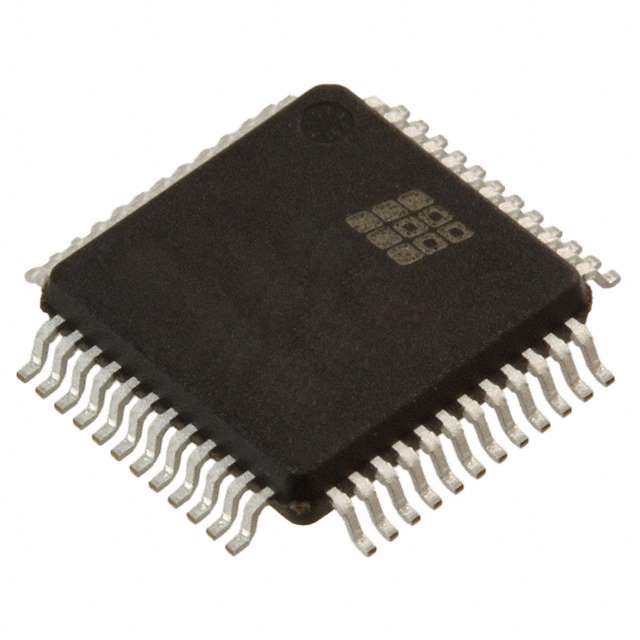

| Part Number | ISPPAC-CLK5304S-01TN48I | ISPPAC-CLK5308S-01TN48I | ISPPAC-CLK5304S-01T48I | ISPPAC-CLK5304S-01TN48C |
|---|---|---|---|---|
| Manufacturer | Lattice Semiconductor Corporation | Lattice Semiconductor Corporation | Lattice Semiconductor Corporation | Lattice Semiconductor Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Clock Generator, Fanout Distribution, Zero Delay Buffer | Clock Generator, Fanout Distribution, Zero Delay Buffer | Clock Generator, Fanout Distribution, Zero Delay Buffer | Clock Generator, Fanout Distribution, Zero Delay Buffer |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL | HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL | HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL | HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL |
| Output | eHSTL, HSTL, LVCMOS, LVTTL, SSTL | eHSTL, HSTL, LVCMOS, LVTTL, SSTL | eHSTL, HSTL, LVCMOS, LVTTL, SSTL | eHSTL, HSTL, LVCMOS, LVTTL, SSTL |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:4 | 2:8 | 2:4 | 2:4 |
| Differential - Input:Output | Yes/No | Yes/No | Yes/No | Yes/No |
| Frequency - Max | 267MHz | 267MHz | 267MHz | 267MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-LQFP | 48-LQFP | 48-LQFP | 48-LQFP |
| Supplier Device Package | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) |
