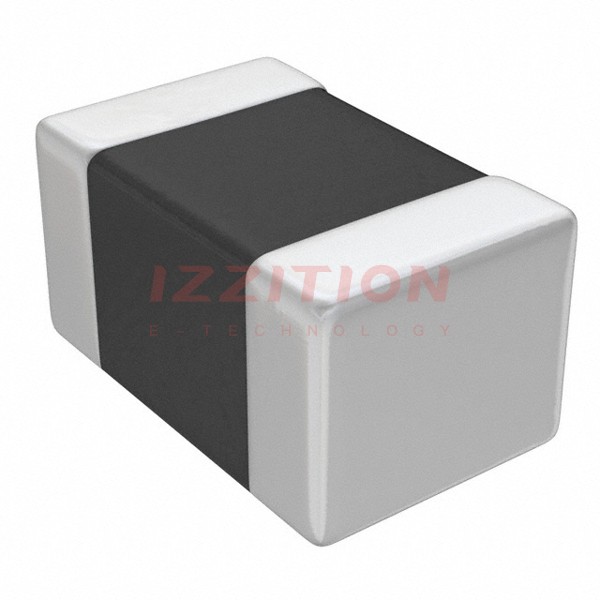

| Part Number | Z0805C101ASMST | Z0805C121ASMST | Z0805C601ASMST | Z0805C102ASMST | Z0805C101APMST |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Filter Type | Signal Line | Signal Line | Signal Line | Signal Line | Power Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 100 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 1 kOhms @ 100 MHz | 100 Ohms @ 100 MHz |
| Current Rating (Max) | 900mA | 800mA | 500mA | 300mA | 2.5A |
| DC Resistance (DCR) (Max) | 100mOhm | 150mOhm | 300mOhm | 400mOhm | 40mOhm |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 85°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - | - | - | - | - |
