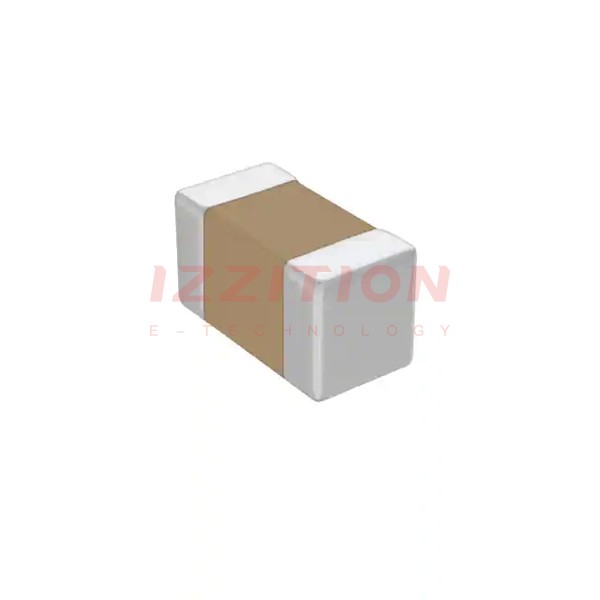

| Part Number | Z0402C100ASMST | Z0402C800ASMST | Z0402C102ASMST | Z0402C100CSMST | Z0402C100APMST |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Filter Type | Signal Line | Signal Line | Signal Line | Signal Line | Power Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 10 Ohms @ 100 MHz | 80 Ohms @ 100 MHz | 1 kOhms @ 100 MHz | 10 Ohms @ 100 MHz | 10 Ohms @ 100 MHz |
| Current Rating (Max) | 1A | - | - | 500mA | - |
| DC Resistance (DCR) (Max) | 50mOhm | 100mOhm | 580mOhm | 150mOhm | 30mOhm |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - | - | - | - | - |
