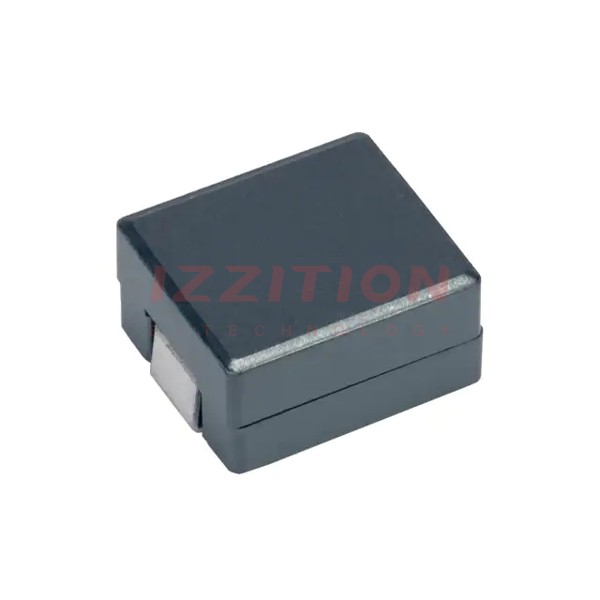

| Part Number | TPI128080L230N | TPI128080L210N |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 230 nH | 210 nH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 50 A | 50 A |
| Current - Saturation (Isat) | 64A | 70A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.29mOhm | 0.29mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.472" L x 0.315" W (12.00mm x 8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) |
