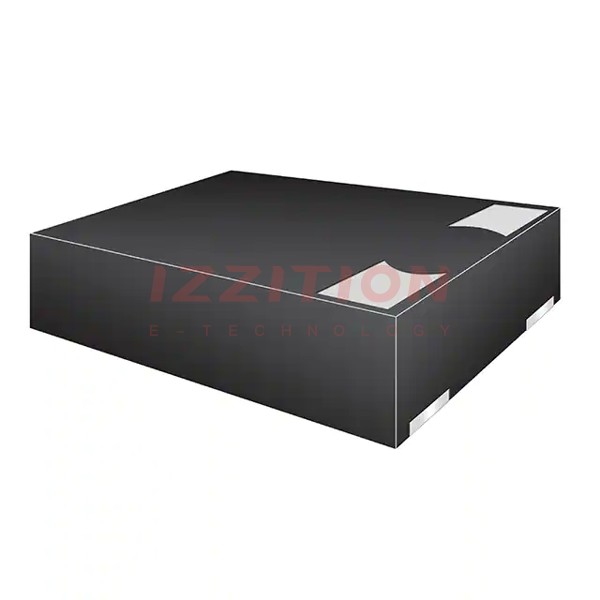

| Part Number | T528Z337M2R5ATE005 | T528Z337M2R5ATE008 | T528Z337M2R5ATE006 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V | 2.5 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100kHz | 8mOhm @ 100kHz | 6mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | - | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.067" (1.70mm) | 0.067" (1.70mm) | 0.067" (1.70mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | Z | Z | Z |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
