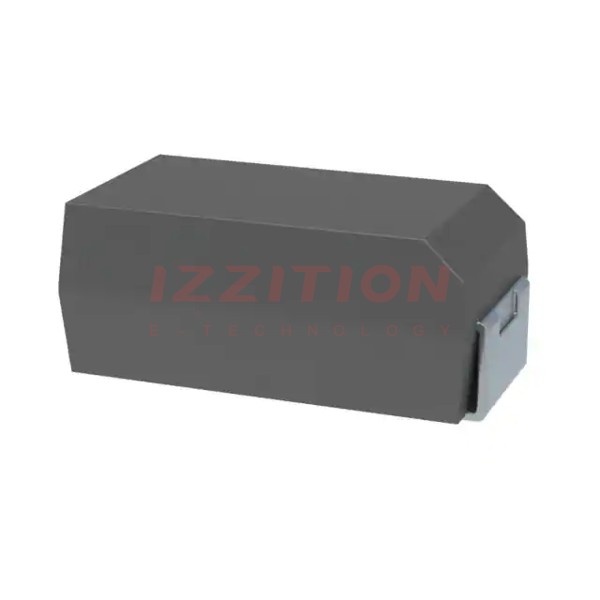

| Part Number | T520C107M006ATE025 | T520C107M006ATE045 | T520C157M006ATE025 | T520B107M006ATE025 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 25mOhm @ 100kHz | 45mOhm @ 100kHz | 25mOhm @ 100kHz | 25mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.079" (2.00mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | C | C | C | B |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
