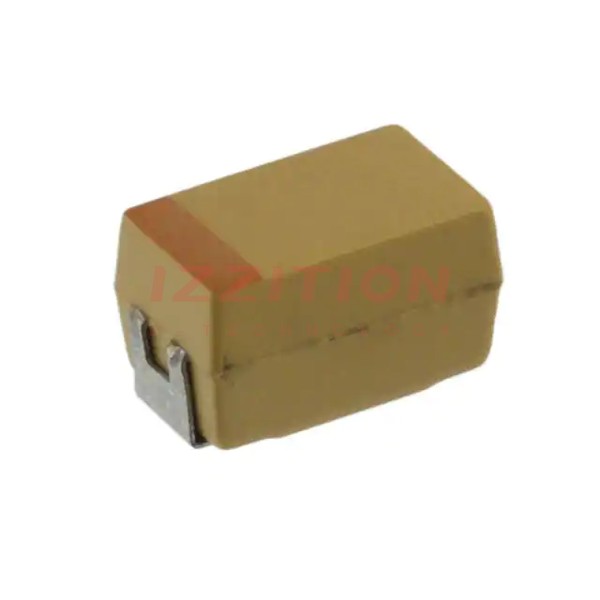

| Part Number | T499D156K025ATE1K0 | T499D106K025ATE1K0 | T499D156K020ATE1K0 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 15 µF | 10 µF | 15 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 25 V | 25 V | 20 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1Ohm | 1Ohm | 1Ohm |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Lifetime @ Temp. | 2000 Hrs @ 175°C | 2000 Hrs @ 175°C | 2000 Hrs @ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D | D | D |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
