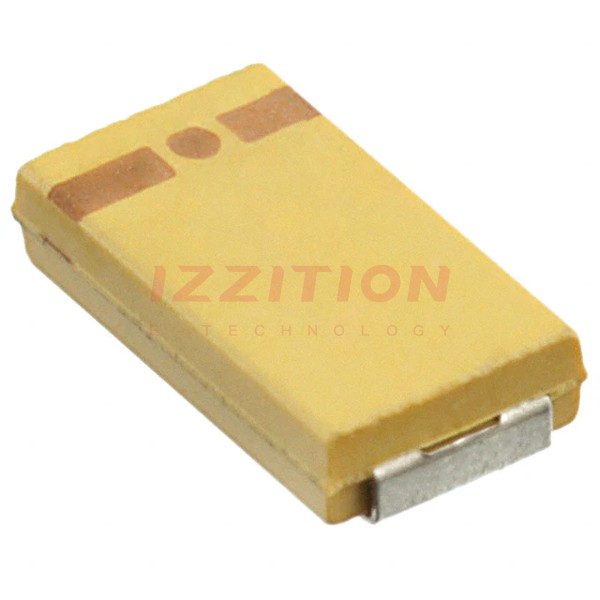

| Part Number | T494U336K010AT | T494U336M010AT | T494D336K010AT | T494T336K010AT |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 10 V | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 600mOhm | 600mOhm @ 100kHz | 250mOhm @ 100kHz | 3.75Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2311 (6028 Metric) | 2312 (6032 Metric) | 2917 (7343 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.236" L x 0.110" W (6.00mm x 2.80mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.122" (3.10mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | U | U | D | T |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
