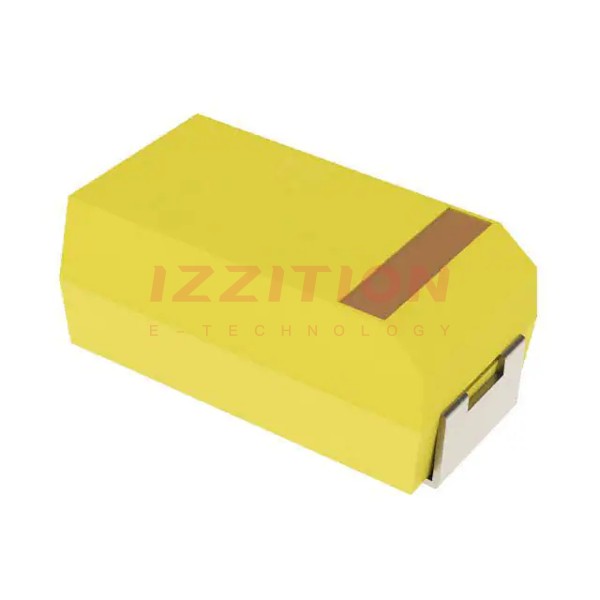

| Part Number | T491E107M025AT | T491E107K025AT | T491E107M020AT |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±10% | ±20% |
| Voltage - Rated | 25 V | 25 V | 20 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 500mOhm | 500mOhm | 500mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2924 (7360 Metric) | 2924 (7360 Metric) | 2924 (7360 Metric) |
| Size / Dimension | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.287" L x 0.236" W (7.30mm x 6.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.150" (3.80mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | E | E | E |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
