Please send RFQ , we will respond immediately.

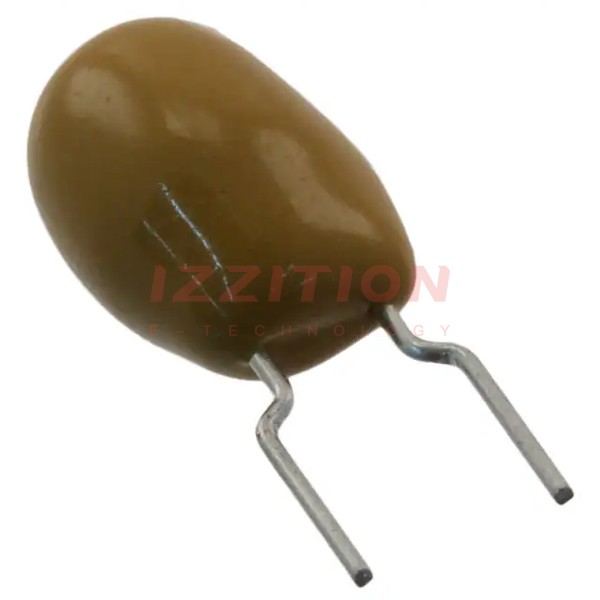

| Part Number | T356K226M035AT | T396K226M035AT | T356K226K035AT | T356K226M035AS |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±10% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 1.3Ohm | 1.3Ohm @ 100kHz | 1.3Ohm | 1.3Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial - 3 Leads | Radial | Radial |
| Size / Dimension | 0.350" Dia (8.90mm) | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.350" Dia (8.90mm) | 0.350" Dia (8.90mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.500" (12.70mm) | 0.610" (15.50mm) | 0.610" (15.50mm) |
| Lead Spacing | 0.200" (5.08mm) | 0.100" (2.54mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Manufacturer Size Code | K | K | K | K |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
