Please send RFQ , we will respond immediately.

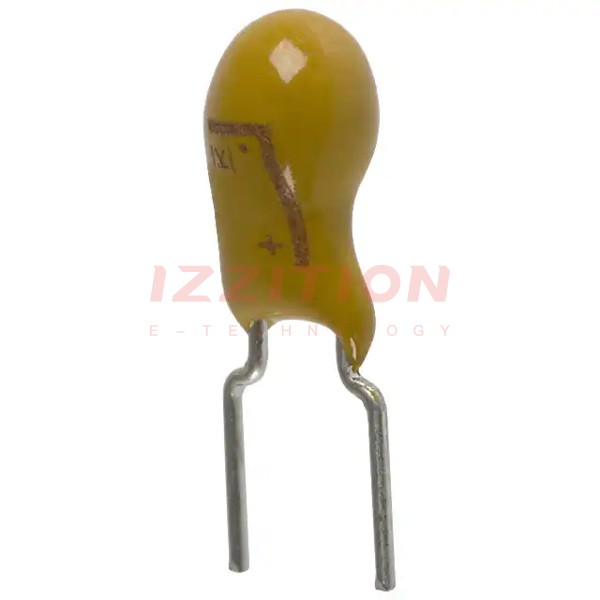

| Part Number | T356E106K025AT | T356E106M025AT | T356E106K020AT | T356E106K025AS |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 25 V | 25 V | 20 V | 25 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 2.5Ohm | 2.5Ohm @ 100kHz | 2.9Ohm | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) |
| Height - Seated (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Manufacturer Size Code | E | E | E | E |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
