Please send RFQ , we will respond immediately.

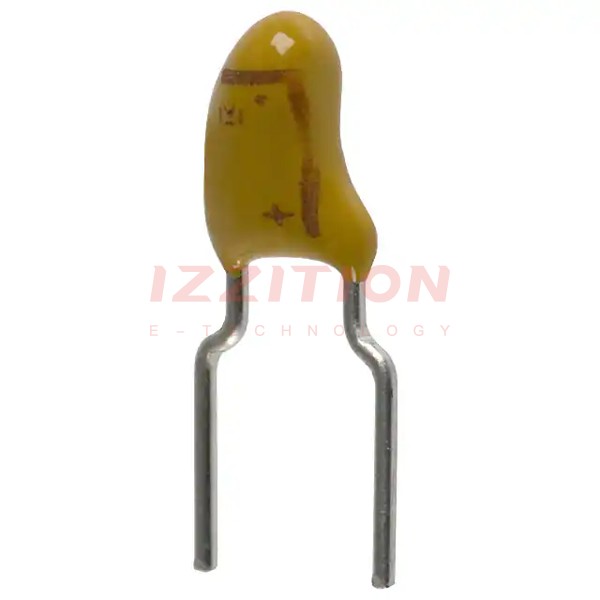

| Part Number | T356A225K010AT | T356A225K016AT | T356A225K020AT | T356A225K010AS |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 10 V | 16 V | 20 V | 10 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 13Ohm | 8Ohm | 7Ohm @ 100kHz | 13Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.177" Dia (4.50mm) | 0.177" Dia (4.50mm) | 0.177" Dia (4.50mm) | 0.177" Dia (4.50mm) |
| Height - Seated (Max) | 0.339" (8.60mm) | 0.339" (8.60mm) | 0.339" (8.60mm) | 0.339" (8.60mm) |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Manufacturer Size Code | A | A | A | A |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
