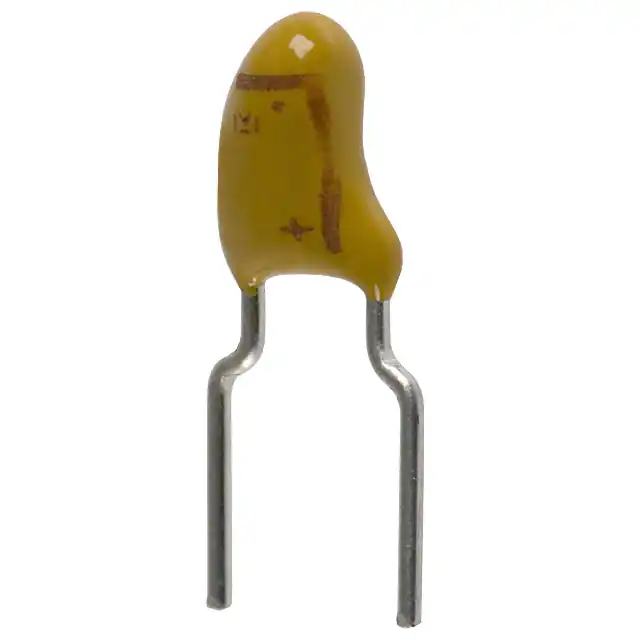

| Part Number | T354M107K020AT | T354M107M020AT | T353M107K020AT | T354M107K020AS |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 20 V | 20 V | 20 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 600mOhm | 600mOhm @ 100kHz | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.402" Dia (10.20mm) | 0.402" Dia (10.20mm) | 0.402" Dia (10.20mm) | 0.402" Dia (10.20mm) |
| Height - Seated (Max) | 0.740" (18.80mm) | 0.740" (18.80mm) | 0.760" (19.30mm) | 0.740" (18.80mm) |
| Lead Spacing | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.200" (5.08mm) | 0.250" (6.35mm) |
| Manufacturer Size Code | M | M | M | M |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
