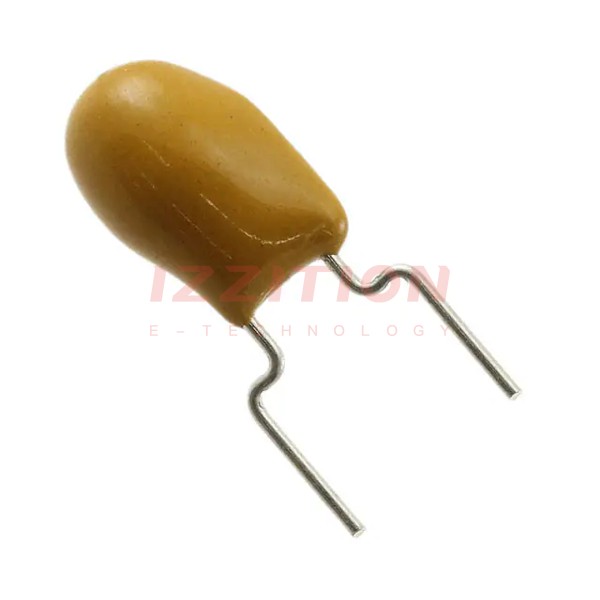

| Part Number | T354K476M025AT | T354K476K025AT | T354K476M020AT |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±10% | ±20% |
| Voltage - Rated | 25 V | 25 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 1Ohm @ 100kHz | 1Ohm @ 100kHz | 1.2Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.350" Dia (8.90mm) | 0.350" Dia (8.90mm) | 0.350" Dia (8.90mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) |
| Lead Spacing | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Manufacturer Size Code | K | K | K |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
