Please send RFQ , we will respond immediately.

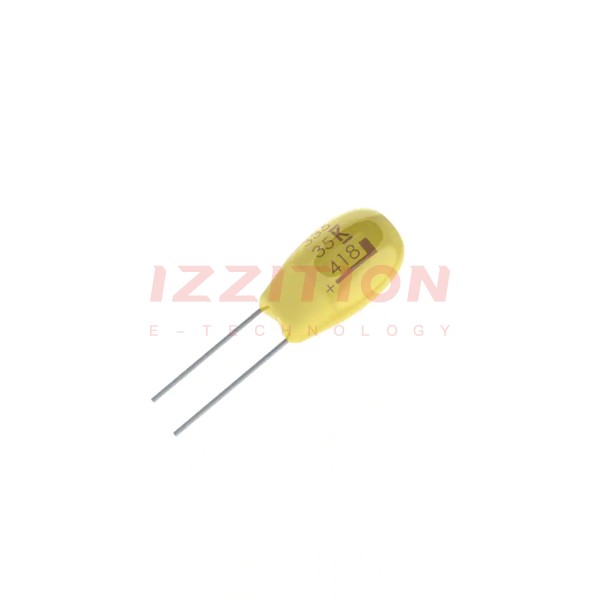

| Part Number | T354F226K016AT | T355F226K016AT | T351F226K016AT | T353F226K016AT | T354F226K016AS |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 16 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 2Ohm @ 100kHz | 2Ohm @ 100kHz | 2Ohm @ 100kHz | 2Ohm @ 100kHz | 2Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.441" (11.20mm) | 0.441" (11.20mm) | 0.480" (12.20mm) | 0.500" (12.70mm) | 0.441" (11.20mm) |
| Lead Spacing | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.100" (2.54mm) | 0.200" (5.08mm) | 0.250" (6.35mm) |
| Manufacturer Size Code | F | F | F | F | F |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
