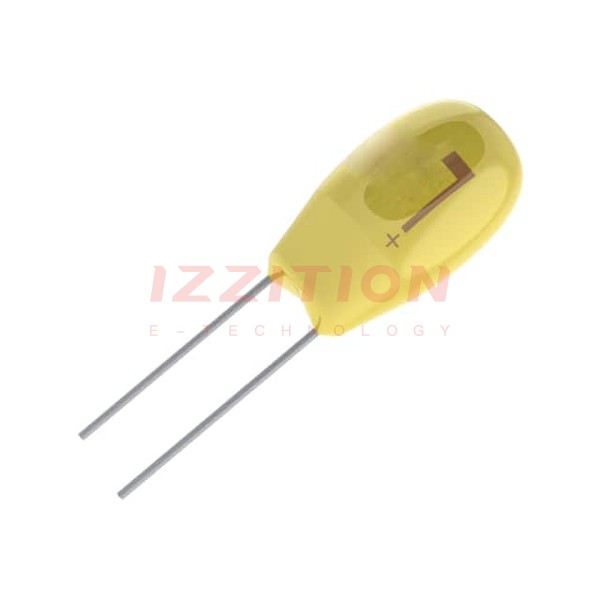

| Part Number | T354B225K025AT | T355B225K025AT | T351B225K025AT |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 25 V | 25 V | 25 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 6Ohm @ 100kHz | 6Ohm @ 100kHz | 6Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.177" Dia (4.50mm) | 0.177" Dia (4.50mm) | 0.177" Dia (4.50mm) |
| Height - Seated (Max) | 0.350" (8.90mm) | 0.350" (8.90mm) | 0.390" (9.90mm) |
| Lead Spacing | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.100" (2.54mm) |
| Manufacturer Size Code | B | B | B |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
