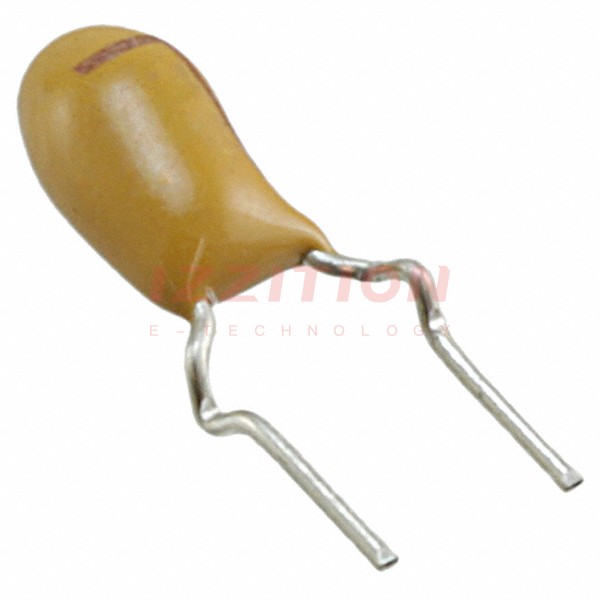

| Part Number | T352E475K035AT | T354E475K035AT | T351E475K035AT |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 35 V | 35 V | 35 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 3Ohm @ 100kHz | 3Ohm | 3Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) |
| Height - Seated (Max) | 0.461" (11.70mm) | 0.400" (10.16mm) | 0.441" (11.20mm) |
| Lead Spacing | 0.200" (5.08mm) | 0.250" (6.35mm) | 0.100" (2.54mm) |
| Manufacturer Size Code | E | E | E |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
